WORKBENCH VACUUM UNIT

Surface decontamination – Electric pump

A PUMP FOR VACUUM WITHOUT PNEUMATIC CONTROL SYSTEM

This vacuum unit meets three major requirements of watchmaking:

It enables particle suction without requiring a central vacuum system. Dust and various particles can be
easily removed, keeping components clean.
With its compact design, the pump takes up very little space on a workstation.
This turnkey device is easy to install, requiring only a few minutes before it is ready for use.

This innovative pump can be used wherever you need it—simply plug it into a power source.

The unit features a pneumatic “vacuum” inlet, and the pump is activated via a foot pedal.

Thanks to its cleanable filter, collected particles are retained, allowing even accidentally aspirated parts to be recovered. In addition, this filter helps protect the pump.

For use across two separate workstations, it is possible to control two suction inlets simultaneously using two foot pedals.

Furthermore, soundproofing foam is installed between the floor and the pump to reduce noise levels. This can lower the sound output to a very low level, making the device particularly quiet

Reference:

H504000

Dimensions :

150 x 335 x 265 mm

Weight :

7 kg

Content :

H504000: One pump, one cleaning filter with residue container, one 3-pin DIN CH

plug, one soundproofing foam, one foot pedal, and one power supply.

Technical specifications:

Vacuum flow rate: 70 L/min
Low sound level: approximately 62 dB
Material: wooden structure
Power supply: 24 V
Continuous operation: 30 minutes with removable soundproofing foam, unlimited without the foam

APPLICATIONS:

CLEANING AND DECONTAMINATION OF WATCHMMAKING COMPONENTS PRIOR TO FINAL ASSEMBLY

Advantages:

➔ Compact and silent

➔ All-in-one

➔ Usable without a pneumatic network

Maintenance advice:

Clean the pump filters regularly

Check the connectors and pipes to detect any leaks

Keep the styluses and pipes clean to ensure optimal operation

RECOMMENDATIONS

The pump is activated by continuous pressure applied to the foot pedal.

When the pedal is released, the pump stops operating.

This product is designed for indoor use only. The installation environment must be clean and dry.

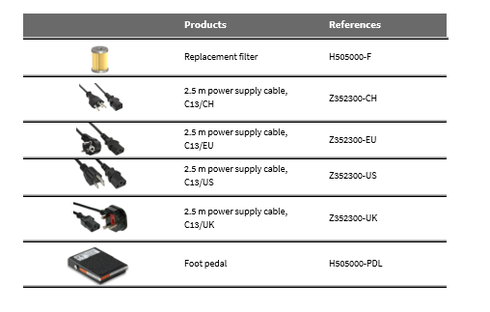

An additional foot pedal kit can also be ordered as an accessory to control two suction inlets simultaneously, as well as a nozzle adapted to your specific needs.

Warning: It is strongly recommended not to use this device for vacuuming liquids.

An acoustic foam pad can be placed between the floor and the pump to reduce noise (up to 54 dB). The pump can be used continuously for about 30 minutes with the foam. When the device overheats, the red LED lights up, the pump stops, and it is no longer operational. A cooling period of approximately 20 minutes is required before restarting it.
